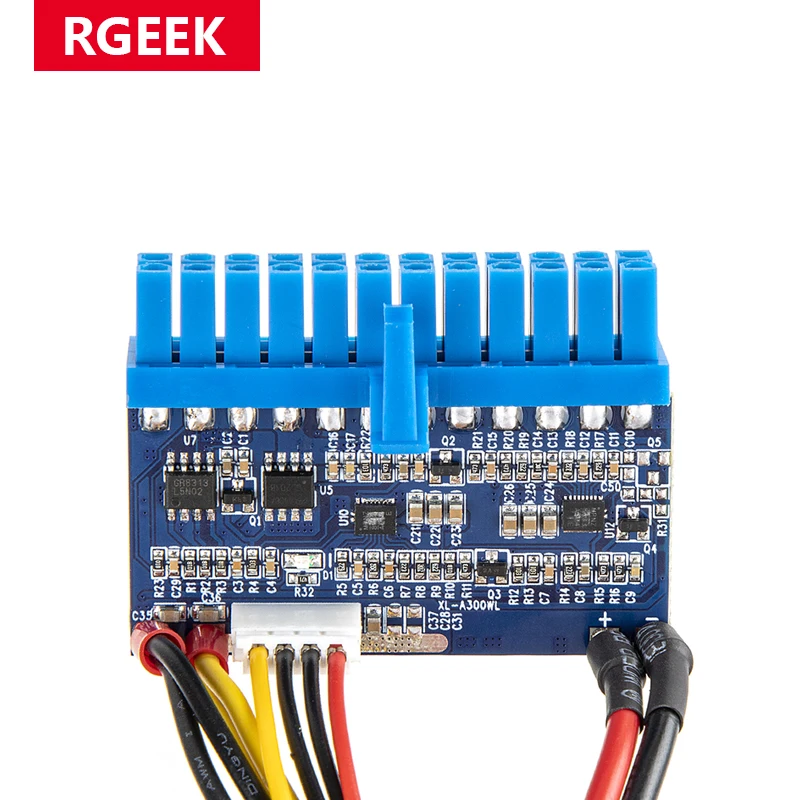

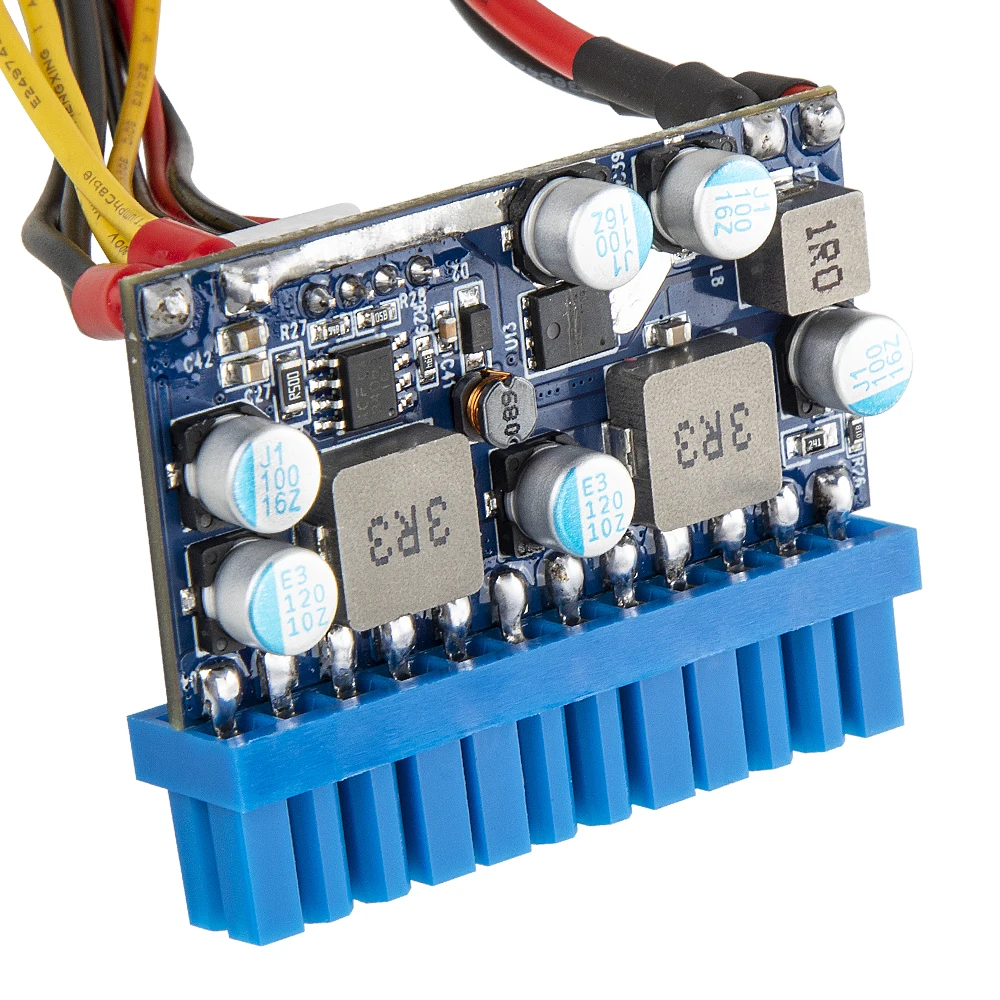

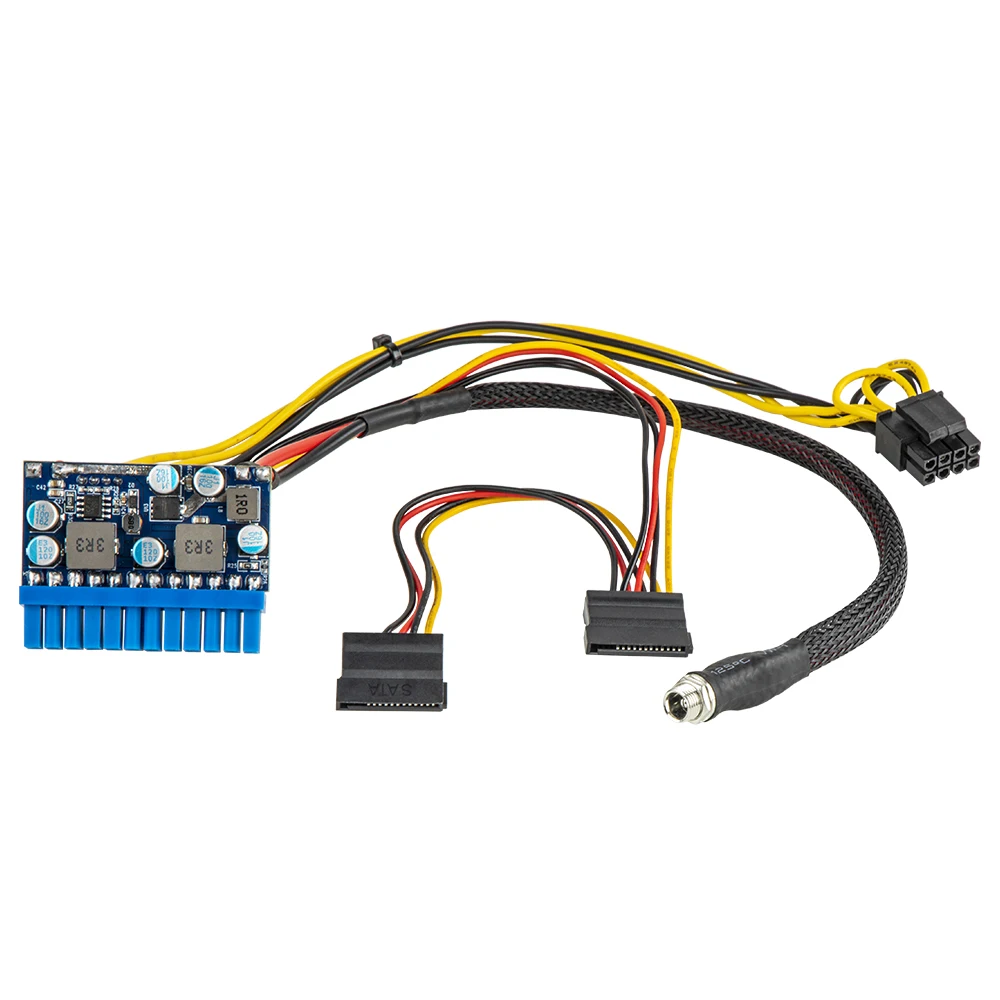

RGEEK DC 12V 300W 24Pin ATX Motherboard Connector Mini ITX Power Supply PICO PSU Module For PC Computer Gamer

SKU: 1005005968293438

Secure Deliveries, Guaranteed Smiles

Each item is handled with care and safeguarded to ensure a joyful unboxing experience.

100%

Original price was: ₵34.64.Current price is: ₵23.55.

Add to compare
Add to wishlist
13 People watching this product now!

Payment Methods:

Description

RGEEK DC 12V 300W 24Pin ATX Motherboard Connector Mini ITX Power Supply PICO PSU Module For PC Computer Gamer
INPUT REQUIRED:

INPUT VOLTAGE RANGE11.4VDC—12.6VDC

INCOMING CURRENT RANGE28.0A Max @11.4VDC

INPUT SURGING CURRENT12.0Amax@12VDC

WORK EFFICIENCY≥85%

OUTPUTREQUIRED:

Item

Output voltage

Output currentA

minV

avgV

maxV

ripplewavemV

Sb current

avg

peak

+3.30V

+3.14

+3.30

+3.47

50

0

6

8.0

+5.00VSB

+4.75

+5.00

+5.25

50

0.1

1.5

2.5

+5.00V

+4.75

+5.00

+5.25

50

0

6

8.0

+12.00V

+11.40

12.00

+12.60

120

0

10

18.0

-12.00V

-11.40

-12.00

-12.60

120

0

0.01

0.05

Environment description:

Working temperature/humidity-5to 55/ 45%-75%

Reposition temperature//humidity-40to +70/ 10%-90%

Atmospheric pressure86Kpa—106Kpa

Input/output interface:

Defencive function

for+3.3V+12V,+5.00V&+5.00VSB power output

OCP output shut down when output current reaches the peak point.

Short-circuit protectionoutput shut down when short-circuit.

PSU timing sequence:

Other parameters:

Working frequencyIcbuilt-in oscillator250-350kHz@Vcc=12V

Feedback reference voltage0.8V±2%@12VDC



window.adminAccountId=240517821;

Specification

Overview

Ships From

CHINA
Rating Power

300W
PFC Type

Active

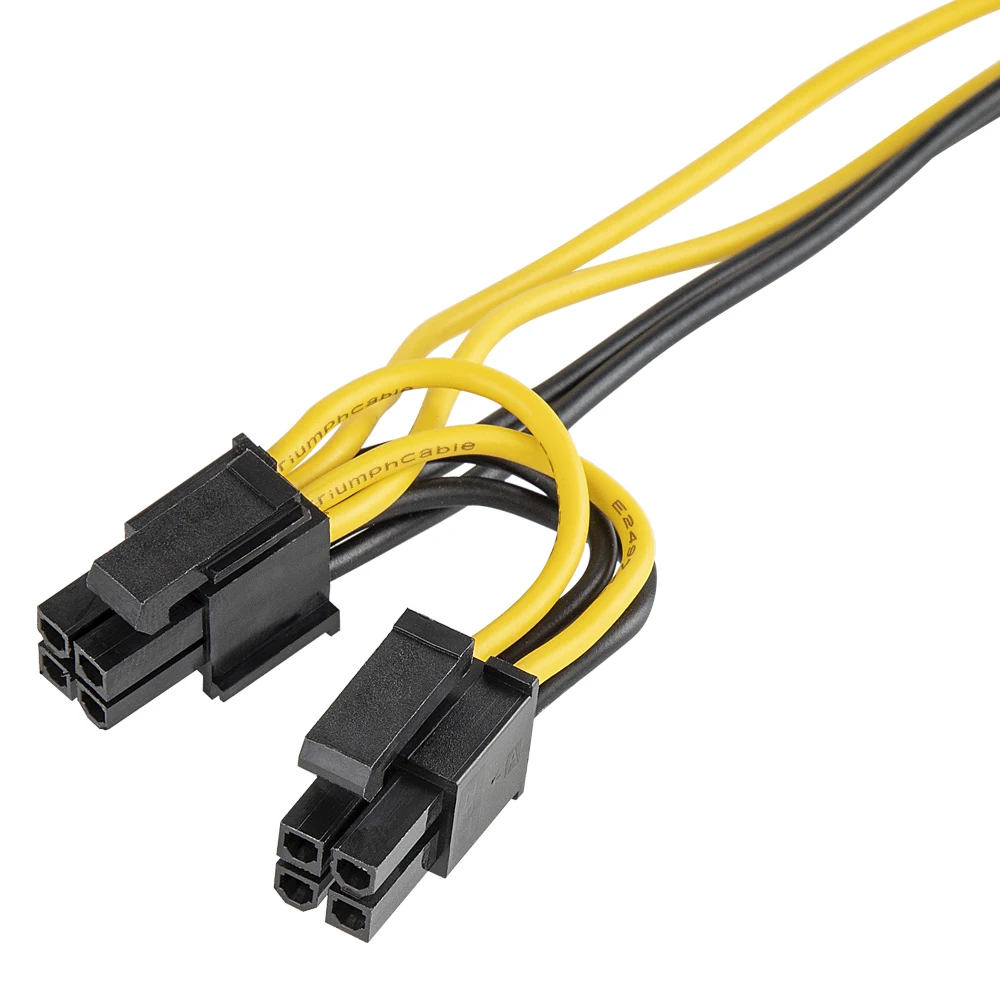

CPU Power Connector

4 pin
Package

Yes
Interface Type

24Pin
Application

Desktop,Server
Model Number

XL-A300WL
Output

+3.30V, +5.00VSB, +5.00V, +12.00V, -12.00V
Input Voltage

12V DC
Modular

Full Modular
80 PLUS Certification

Other Certification
Brand Name

RGeek
Origin

Mainland China
Certification

NONE
4pin Number

1
Number of SATA Ports

1

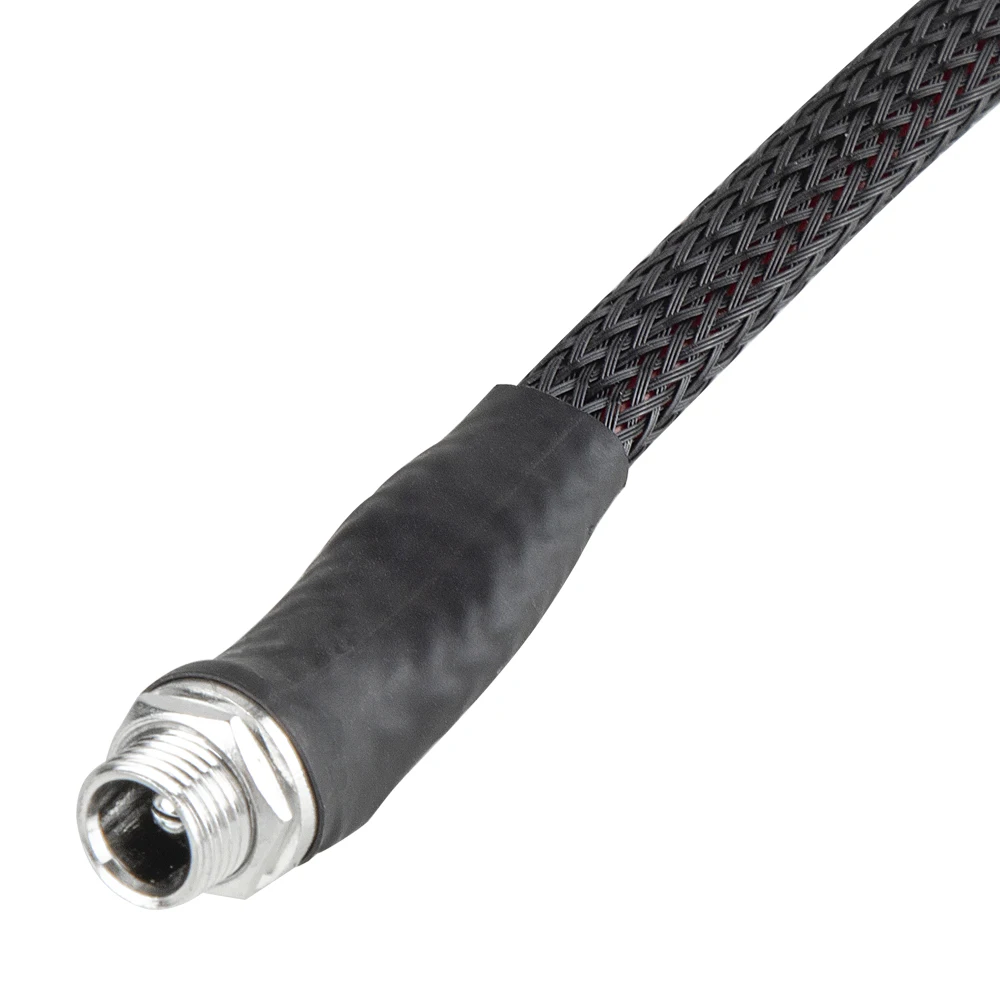

DC input connector

2.5mm inner diameters, 5.5mm outer diameter

Processor
