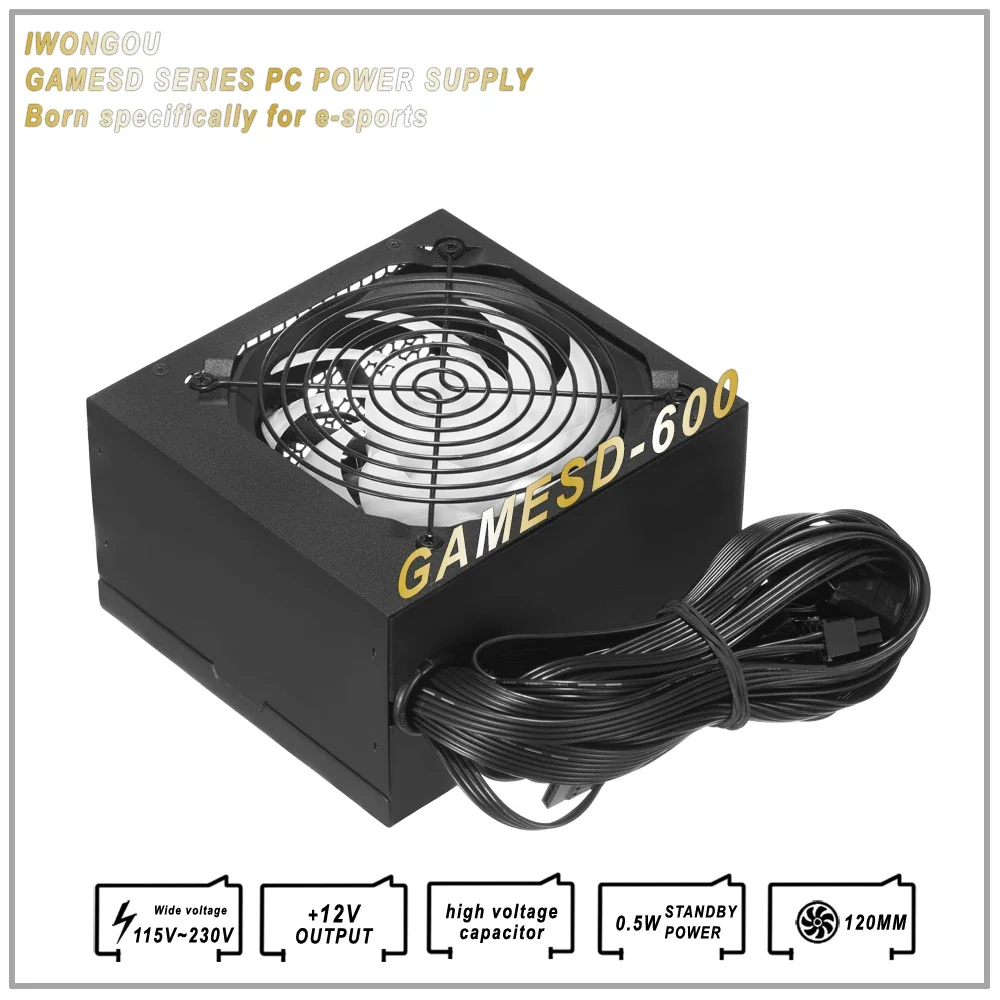

product name |
GAMESD-600 |
MTBF |
40000Hrs |
|
Product Size |
150×140×86mm |
Cooling System |
120mm Hydraulic Bearing |
|
Package size |
260×120×180mm |
Net weight |
1230g |
|
Input Voltage |
110/220V |
PackageWeight |
1350g |
|
Input Frequency Range |
50/60HZ |
Power cord length |
1.2 m |
|
Rating Power |
500W |
Package |
1*PowerSource,1*Power cord,1*Warranty card |
MotherBoard Power:20+4PIN*1
CPU Power:4+4PIN*1
Graphics Card Power:6+2pin*1
SATA*3
4P Molex*1
Support back wiring, easy wiring, rich connector types.
Power supply size:150mm*140mm*86mm.
Colorful and vivid, unique aperture side lighting, providing soft and uniform light source.
Product details:
1,High-quality filter capacitors, low ripple, effectively improve the power environment of the motherboard and graphics card, and extend the service life.
2,Transformer: The coil is wound with copper wire, made of real materials and sufficient power.Full-bridge circuit design, higher energy efficiency, more convenient installation.
3,The EMI circuit filters out various interference signals penetrating from the power grid to prevent the high frequency formed by the power switch circuit from disturbing the power grid. Make the current release more stable and make the computer last longer.
4,Main capacitors withstand high temperature, high temperature and high voltage resistance to extend the service life of the power supply.
5,120mm fan, high-density cooling hole, hydraulic bearing low-noise operation and large area honeycomb cooling hole for rapid cooling.
6,Black flat wire, simple and beautiful wiring, smoother airflow and convenient installation.
Option2:Rating Power: 600W(GAMESD700)
|
product name |
GAMESD-700 |
MTBF |
40000Hrs |
|
Product Size |
150×140×86mm |
Cooling System |
120mm Hydraulic Bearing |
|
Package size |
260×120×180mm |
Net weight |
1450g |
|
Input Voltage |
110-240V |
PackageWeight |
1550g |
|
Input Frequency Range |
50/60HZ |
Power cord length |
1.5 m |
|
Rating Power |
600W |
Package |
1*PowerSource,1*Power cord,1*Warranty card |
MotherBoard Power:24PIN*1
CPU Power:4+4PIN*2
Graphics Card Power:6+2pin*2
SATA*4
4P Molex*2
Support back wiring, easy wiring, rich connector types.
Power supply size:150mm*140mm*86mm.
Colorful and vivid, unique aperture side lighting, providing soft and uniform light source.
Product details:
1,High-quality filter capacitors, low ripple, effectively improve the power environment of the motherboard and graphics card, and extend the service life.
2,Transformer: The coil is wound with copper wire, made of real materials and sufficient power.Full-bridge circuit design, higher energy efficiency, more convenient installation.
3,The EMI circuit filters out various interference signals penetrating from the power grid to prevent the high frequency formed by the power switch circuit from disturbing the power grid. Make the current release more stable and make the computer last longer.
4,Active PFC, mature architecture, stable and efficient, support wide range 110-240V, avoid low voltage downtime.
5,Main capacitors withstand high temperature, high temperature and high voltage resistance to extend the service life of the power supply.
6,120mm fan, high-density cooling hole, hydraulic bearing low-noise operation and large area honeycomb cooling hole for rapid cooling.
7,Black flat wire, simple and beautiful wiring, smoother airflow and convenient installation.
Option3:Rating Power: 700W(GAMESD800)
|
product name |
GAMESD-800 |
MTBF |
40000Hrs |
|
Product Size |
150×140×86mm |
Cooling System |
120mm Hydraulic Bearing |
|
Package size |
260×120×180mm |
Net weight |
1600g |
|
Input Voltage |
100-240V |
PackageWeight |
1650g |
|
Input Frequency Range |
50/60HZ |
Power cord length |
1.5 m |
|
Rating Power |
700W |
Package |
1*PowerSource,1*Power cord,1*Warranty card |
MotherBoard Power:24PIN*1
CPU Power:4+4PIN*2
Graphics Card Power:6+2pin*2
SATA*4
4P Molex*2
5v3pin*1
Support back wiring, easy wiring, rich connector types.
Power supply size:150mm*140mm*86mm.
Colorful and vivid, unique aperture side lighting, providing soft and uniform light source.
Product details:
1,High-quality filter capacitors, low ripple, effectively improve the power environment of the motherboard and graphics card, and extend the service life.
2,Transformer: The coil is wound with copper wire, made of real materials and sufficient power.Full-bridge circuit design, higher energy efficiency, more convenient installation.
3,The EMI circuit filters out various interference signals penetrating from the power grid to prevent the high frequency formed by the power switch circuit from disturbing the power grid. Make the current release more stable and make the computer last longer.
4,Active PFC, mature architecture, stable and efficient, support wide range 100-240V, avoid low voltage downtime.
5,Main capacitors withstand high temperature, high temperature and high voltage resistance to extend the service life of the power supply.
6,Fully mechanically welded PCB board, more stable performance.
7,120mm fan, high-density cooling hole, hydraulic bearing low-noise operation and large area honeycomb cooling hole for rapid cooling.
Option4:Rating Power: 800W(GAMESD1200)
|
product name |
GAMESD-1200 |
MTBF |
40000Hrs |
|
Product Size |
160×150×86mm |
Cooling System |
120mm Hydraulic Bearing |
|
Package size |
260×120×180mm |
Net weight |
1820g |
|
Input Voltage |
90-240V |
PackageWeight |
1990g |
|
Input Frequency Range |
50/60HZ |
Power cord length |
1.5 m |
|
Rating Power |
800W |
Package |
1*PowerSource,1*Power cord,1*Warranty card |
MotherBoard Power:20+4PIN*1
CPU Power:4+4PIN*2
Graphics Card Power:6+2pin*2
SATA*4
4P Molex*2
Support back wiring, easy wiring, rich connector types.
Power supply size:160mm*150mm*86mm.
Colorful and vivid, unique aperture side lighting, providing soft and uniform light source.
Product details:
1,High-quality filter capacitors, low ripple, effectively improve the power environment of the motherboard and graphics card, and extend the service life.
2,Transformer: The coil is wound with copper wire, made of real materials and sufficient power.Full-bridge circuit design, higher energy efficiency, more convenient installation.
3,The EMI circuit filters out various interference signals penetrating from the power grid to prevent the high frequency formed by the power switch circuit from disturbing the power grid. Make the current release more stable and make the computer last longer.
4,Active PFC, mature architecture, stable and efficient, support wide range 90-240V, avoid low voltage downtime.
5,Main capacitors withstand high temperature, high temperature and high voltage resistance to extend the service life of the power supply.
6,With DC-DC design, the current is more stable, the conversion efficiency is higher, the power distribution is more intelligent, and the running state of the accessories is more stable.
Option5:Rating Power: 80PLUS GOLD 850W(GAMESD850)
|
product name |
GAMESD-850 |
MTBF |
40000Hrs |
|
Product Size |
160×150×86mm |
Cooling System |
120mm Hydraulic Bearing |
|
Package size |
260×120×180mm |
Net weight |
1875g |
|
Input Voltage |
90-240V |
PackageWeight |
2120g |
|
Input Frequency Range |
50/60HZ |
Power cord length |
1.5 m |
|
Rating Power |
850W |
Package |
1#package:1*PowerSource,1*Power cord,1*Warranty card |
