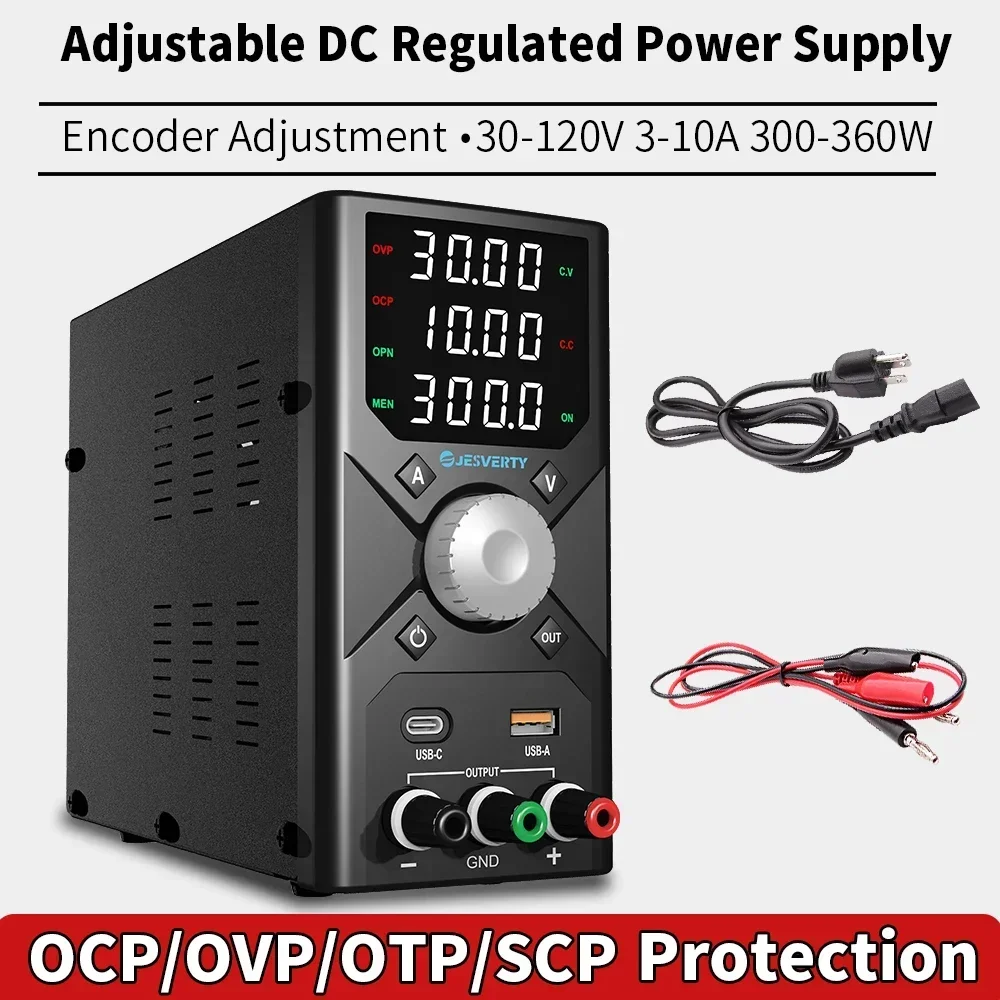

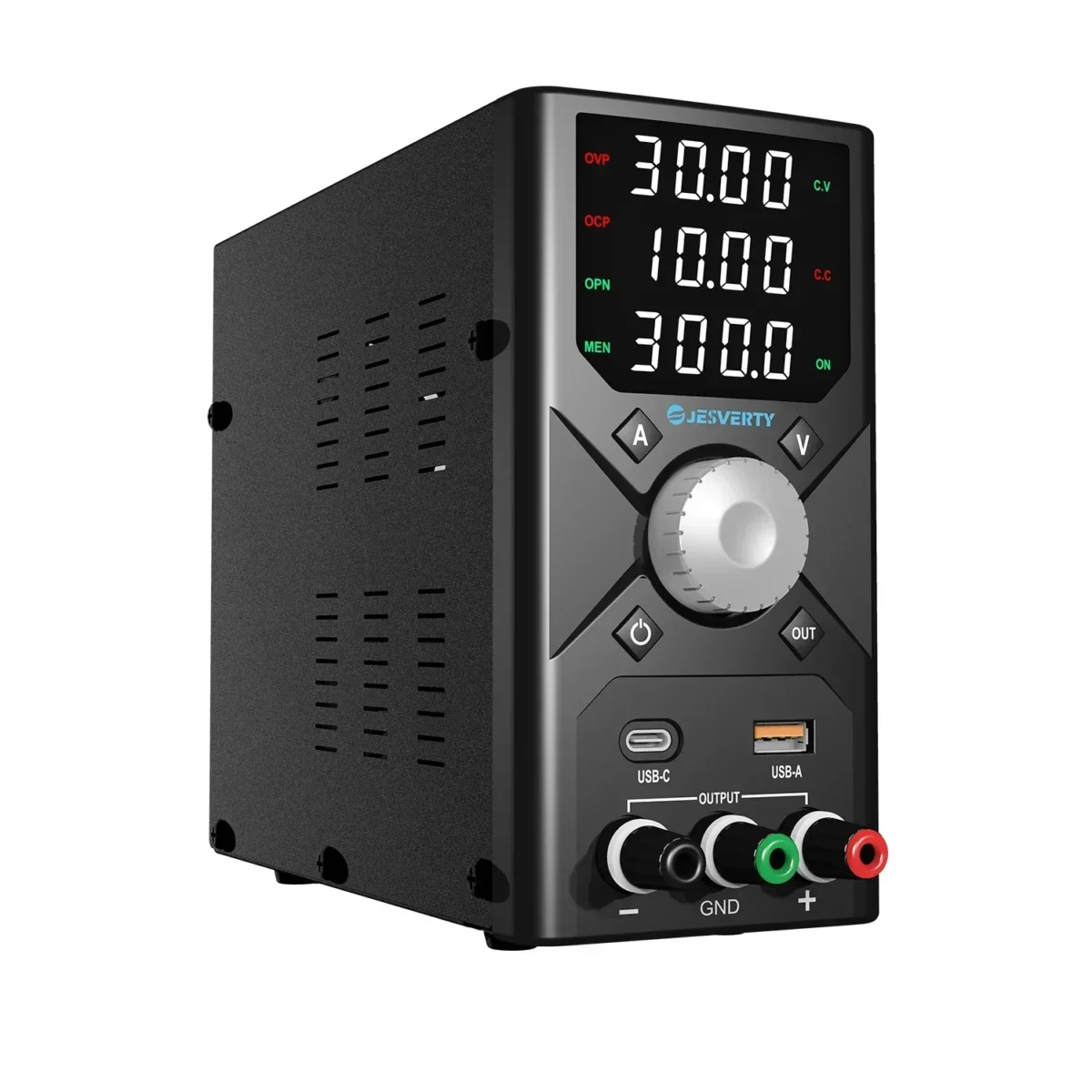

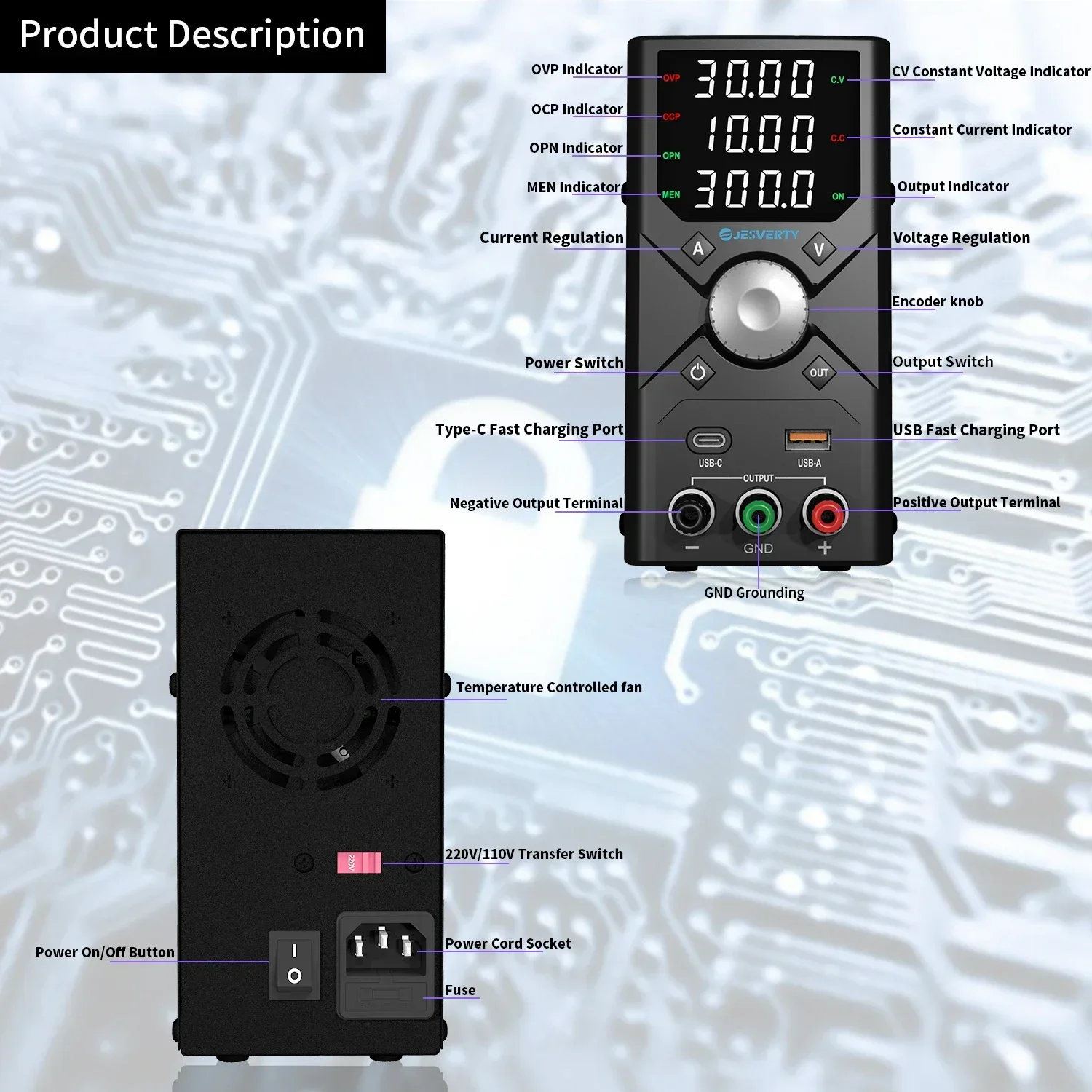

1.Four Digit LED Display, Voltage Current And Power, High Precision And Features of Voltage Stabilization, Current Llimiting, And Simple Operation.

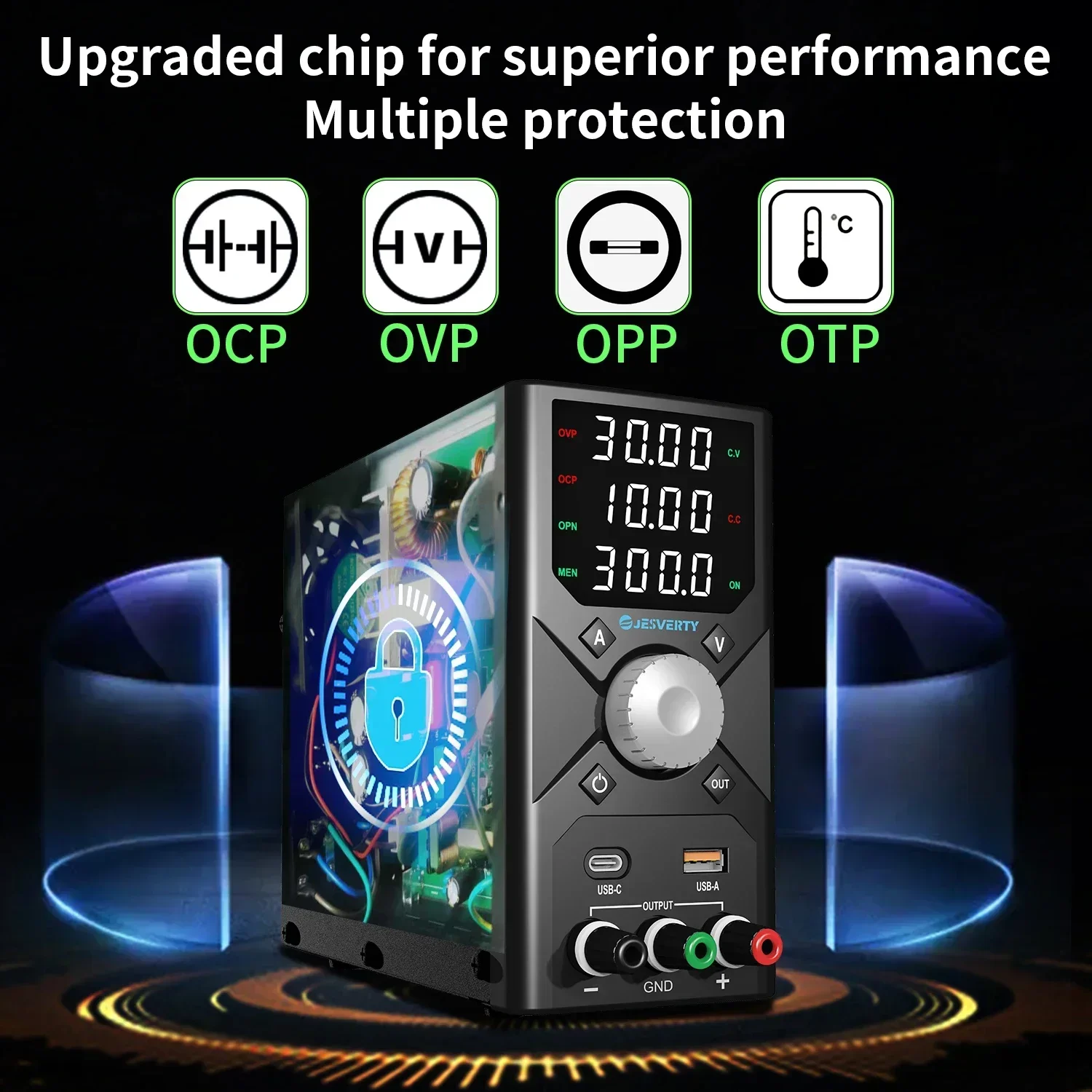

2.Have complete operating protection function
3.Highly efficient, low ripple, small volume, light weight
4.Display voltage, current,power, high precision
5.Voltage stabilization, current limiting, simple operation
6.Single voltage input(Dual voltage input easily destroys power supply)We will Send
the correct input voltage power supply according to your country
7.Temperature control fan heat dissipation, low noise
8.Double potentiometer more precise adjustment
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment
10.Output current ranges from 0 to rating current with continuous adjustment
|
Model Name |
SPS-3010 |
SPS-6005 |
SPS-12003 |
|
|
Output Voltage |
0-30V |
0-60V |
0-120V |
|
|
Output Current |
0-10A |
0-5A |
0-3A |
|
|
Output Power |
300W |
300W |
360W |
|
|
Input Voltage |
230V±10% 50Hz or 115V±10% 60Hz |
|||
|
Working Temperatur |
Working temperature:0℃-40℃;relative humidity:<80%RH |
|||
|
Storage temperature |
Storage temperature:-10℃～70℃;relative humidity:<70%RH |
|||
|
Constant voltage CV |
||||
|
Voltage stability:0.1%±3mV |
||||
|
Load stability: 0.2%±3mV |
||||
|
Ripple voltage:≤0.5% Vp-p |
||||
|
0 to rated voltage continuously adjustable |
||||
|
Constant current CC |
||||
|
Current stability:0.1%±3mA |
||||
|
Load stability: 0.2%±3mA |
||||
|
Ripple current:≤0.5% Vp-p |
||||
|
Recovery time:≤500μS |
||||
|
Temperature coefficient:≤100ppm/℃ |
||||
|
0 to rated current continuously adjustable |
||||
|
Display |
||||
|
LED digit display |
||||
|
Display accuracy:0.5%±digits |
||||
|
Display resolution: voltage0.1V/0.01V, current0.01A/0.001A |
||||
1. For Factory Production line test.

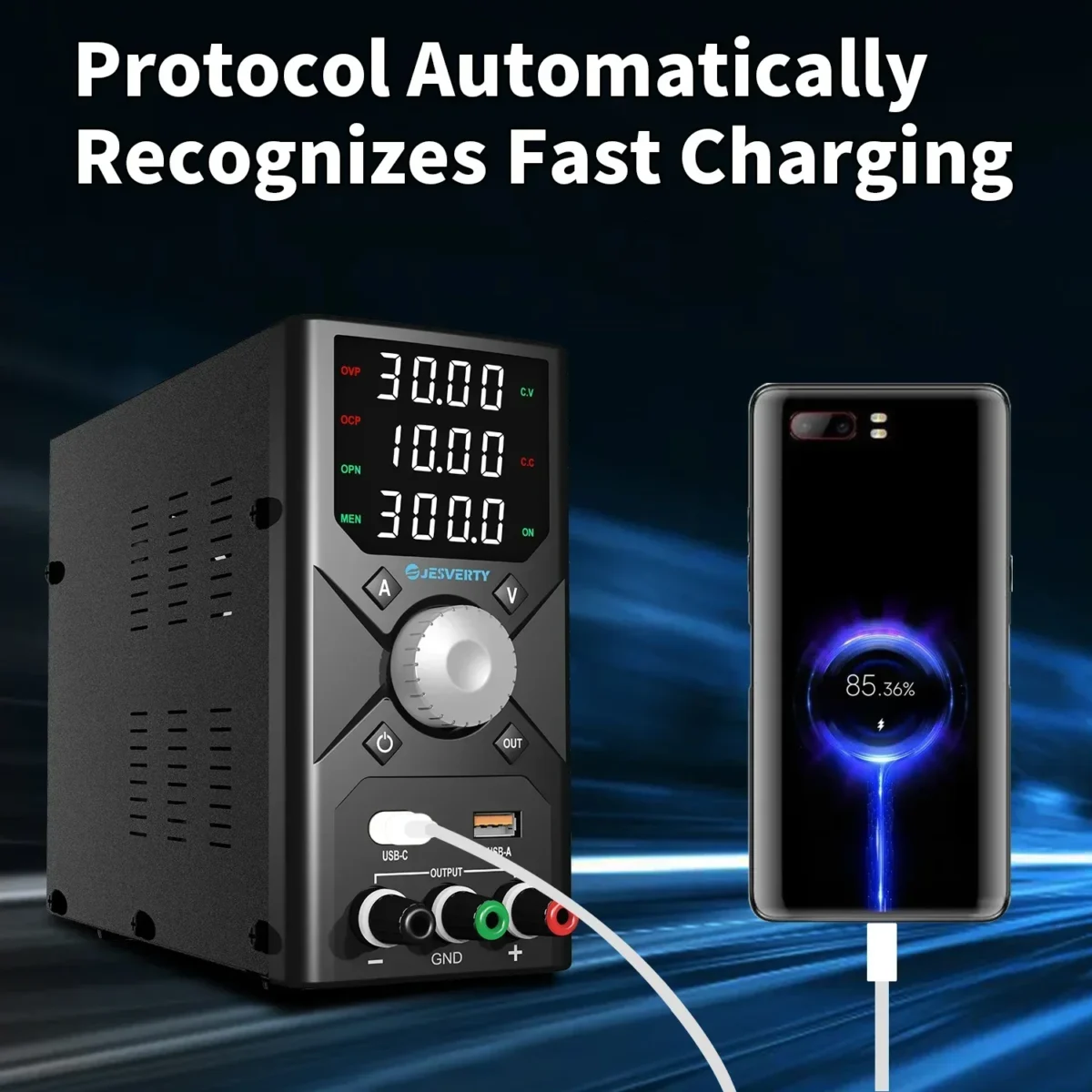

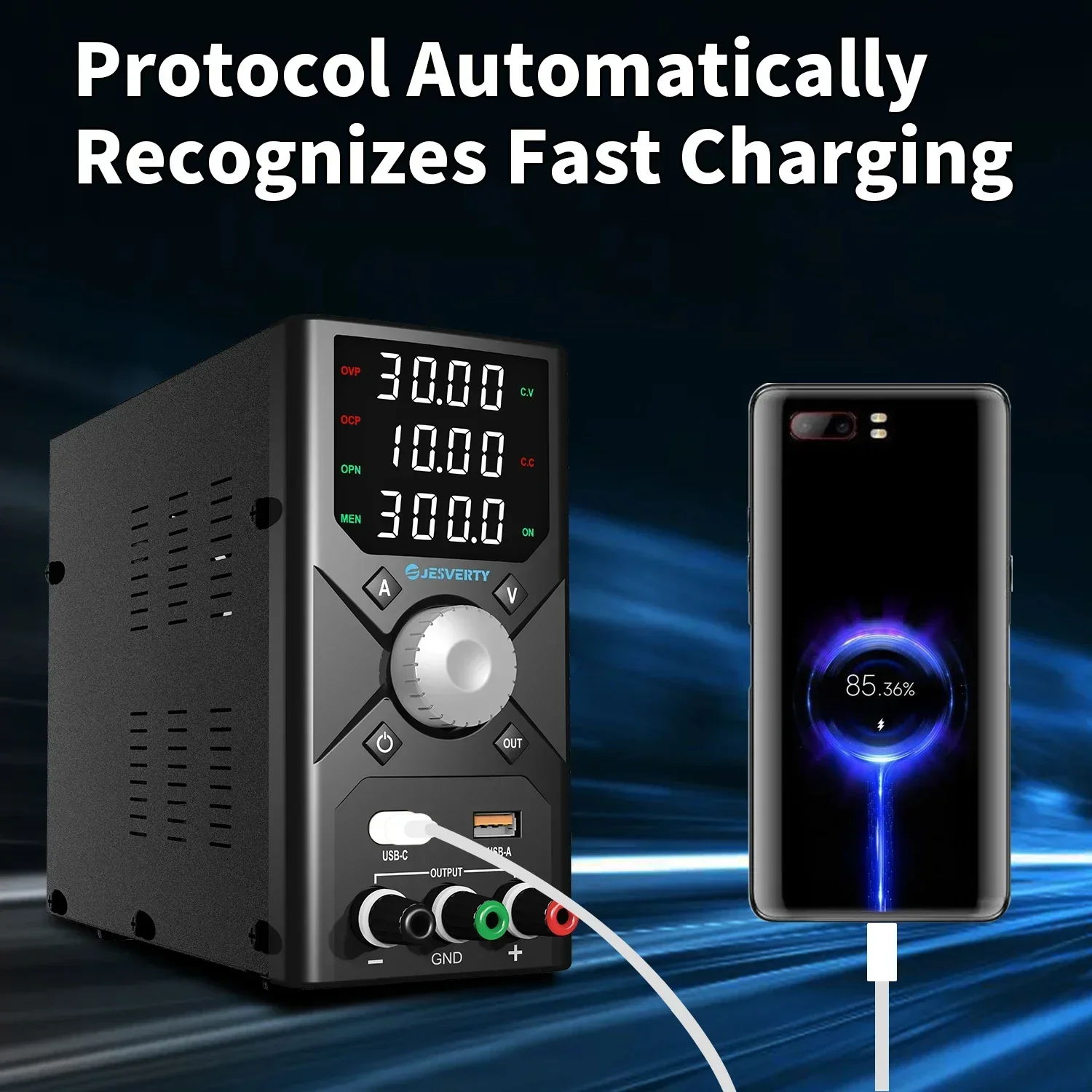

2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.
3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.
4. For Charge the battery (Include car battery).
5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.
6. For Security monitoring system, fire protection system, building automation system
【Packaging and after-sales】:
1X Power Adapter(EU/AU/UK/US we will send according to you country)
1X DC Power Supply
1X Black Output Line
1X Red Output Line
1X Instruction Book (English)
1X Pakcgae Box(Hard)
2X Protective Sponge
1X Certificate of Conformity(1 Year)
we provide lifelong technical support. If you are not satisfied with the product you have received, please feel free to contact us.
