Four-digit display 0.01 V/0.001 A

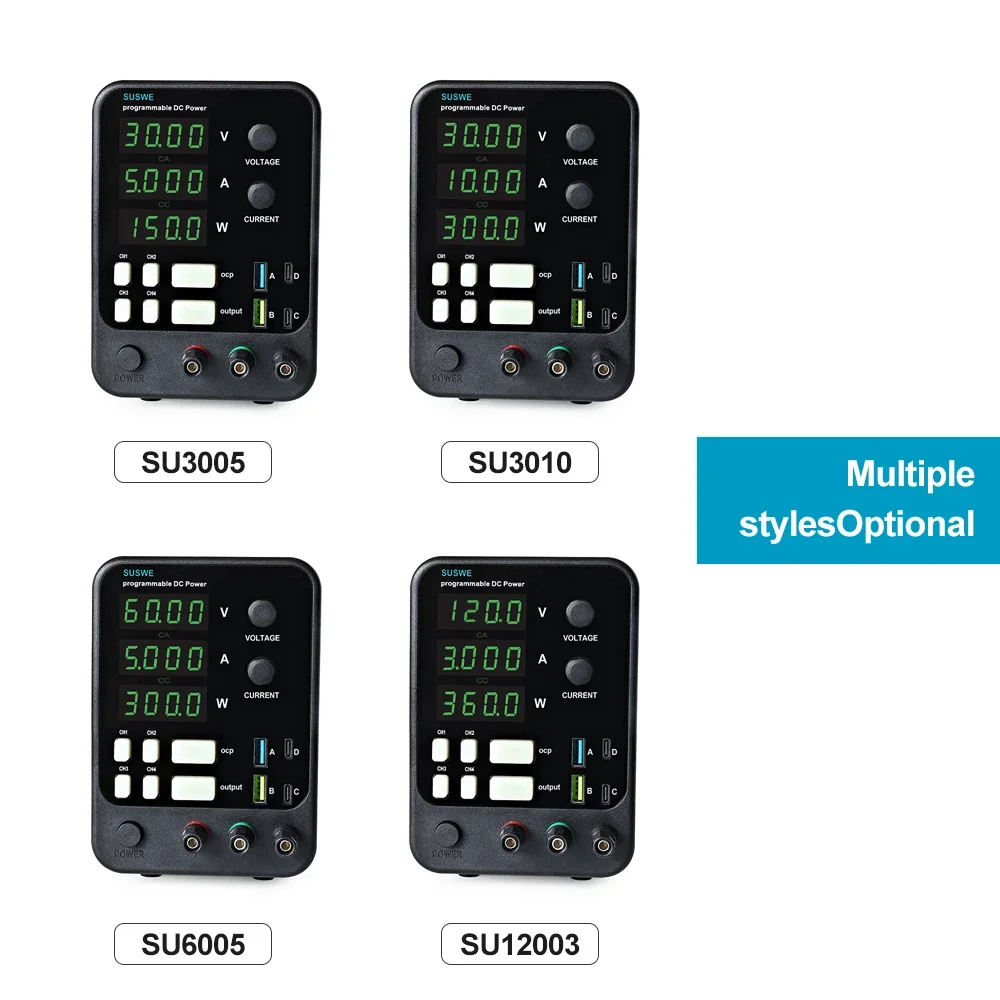

1.SU3010 Programmable DC power supply with power display 30V10A
2.SU6005 Programmable DC power supply with power display 60V 5A
3.SU12003 Programmable DC power supply with power display 120V 3A
4 SU3005 Programmable DC power supply with power display 30V5A
SUSWE new series products. This model is a miniature switching DC power supply. The output voltage and The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously
5.adjusted between 0 and nominal value with fine regulating and coarse regulating
6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. AC 110v and 220v can work , rest assured to choose.
12. Programmable DC power supply
Output Power
150W/300W/360W
Output voltage
0~Continuous adjustable nominal voltage
Output current
0~Continuous adjustable nominal current
Working environment
Input voltage:AC 230V/115V±15%;50Hz/60Hz Input AC voltage can be switched for selection
Working temperature:0℃～40℃;relative humidity:<80%RH
Storage temperature:-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
Voltage stability:0.3%±3mV
Load stability: 0.5%±3mV
Ripple voltage:≤0.5% Vp-p
Constant current CC
Current stability:0.5%±3mA
Load stability: 0.5%±3mA
Ripple current:≤0.5% Vp-p
Protection methods: overvoltage protection, overcurrent protection, over temperature protection, short circuit protection

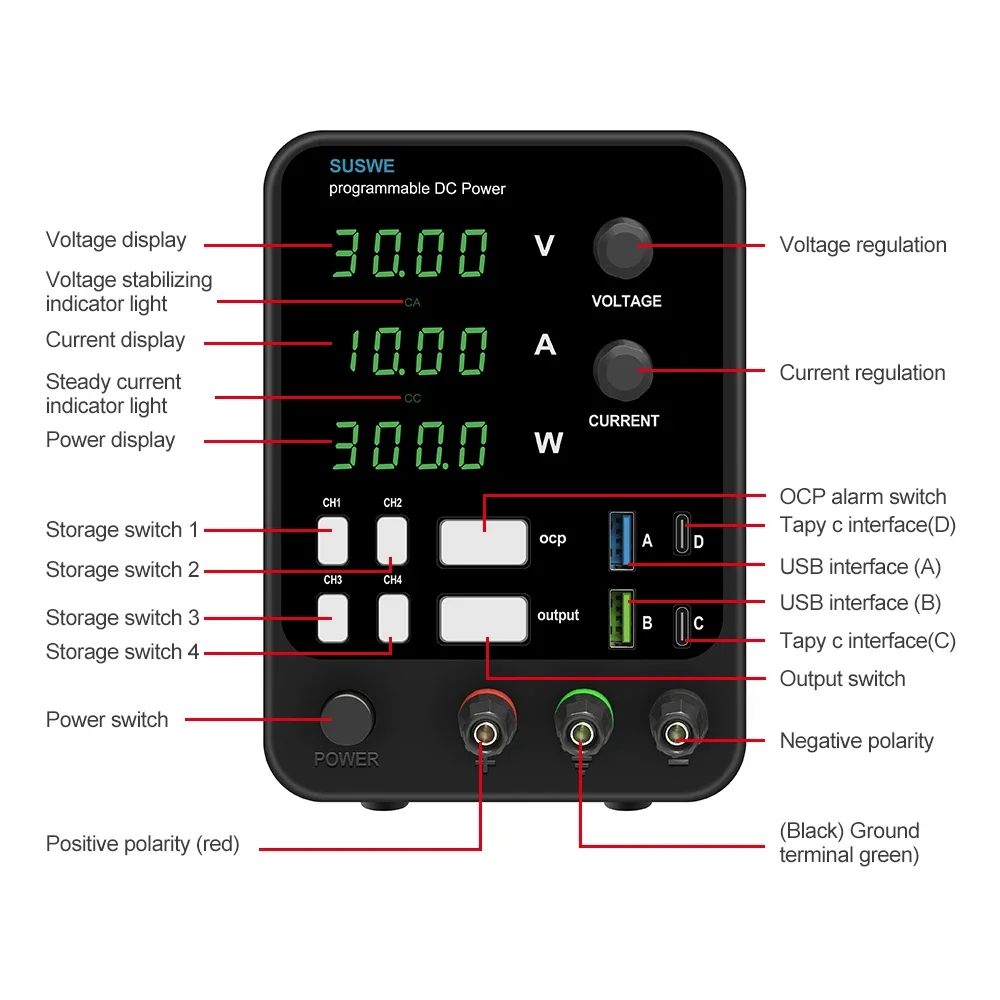

Display: four digit Nixie tube, three groups of display of voltage, current and power
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.

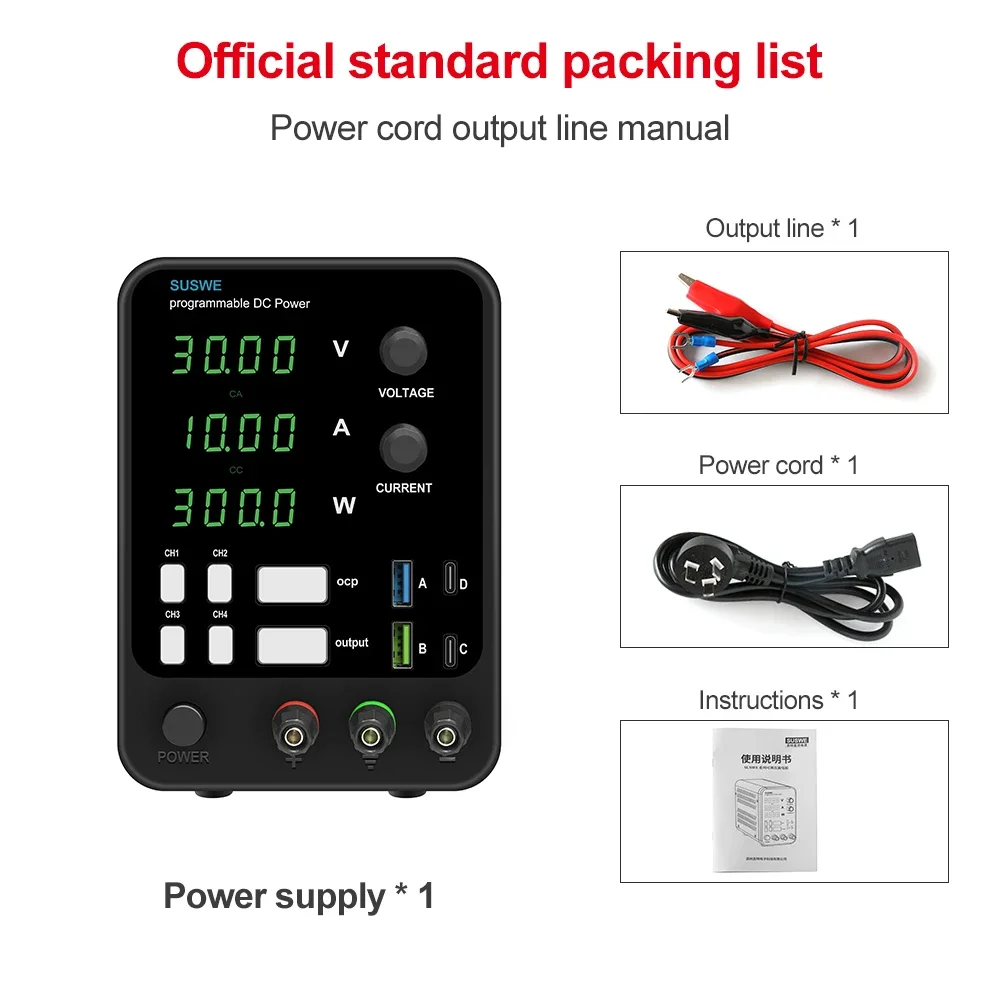

1x DC power supply
1x power cord (EU,US,UK,AU)We will configure the correct plug according to your country (you can consult customer service)
1x Test line
1x Instructions

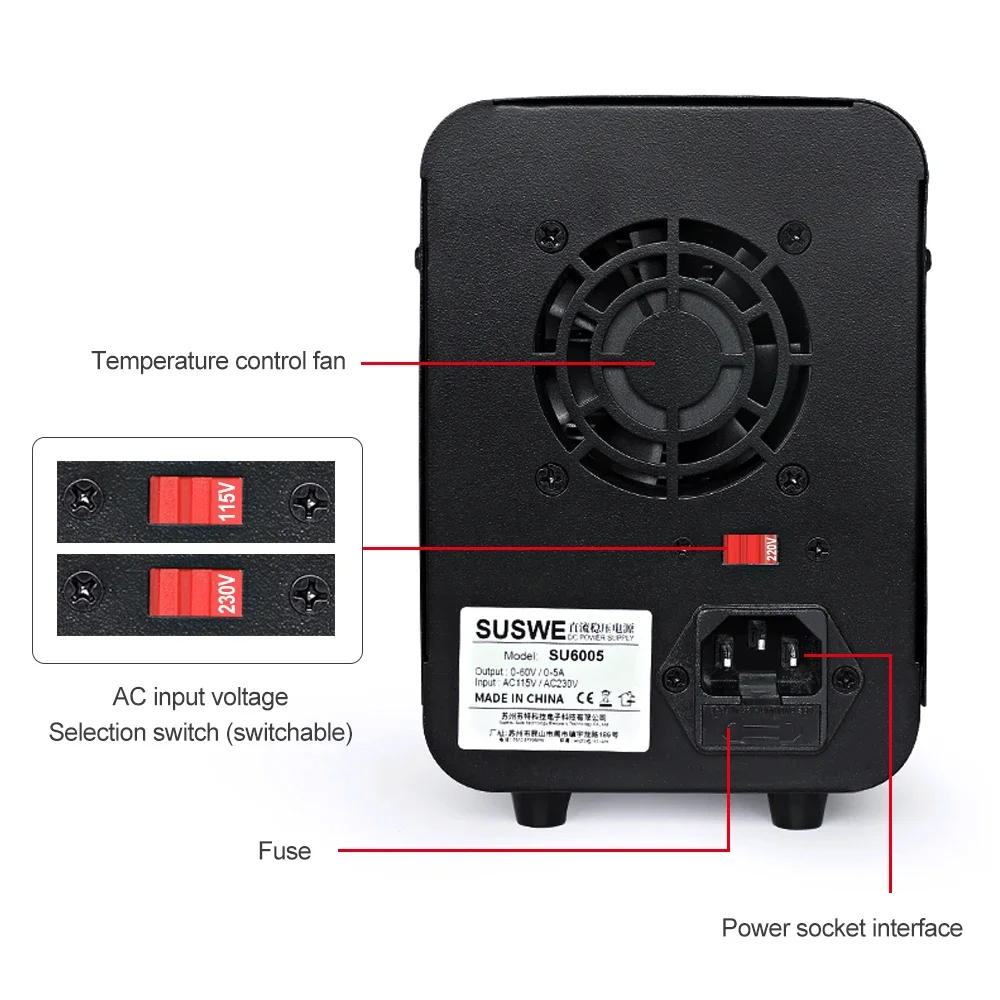

Q: Is the input voltage of the power supply 220V or 110V?
A: There is an adjustable switch on the back of the power supply. If the input voltage in your area is 110V, please turn the switch to 115V to use it. If the input voltage in your area is 220V, please turn the switch to 230V to use it. The factory default value of power input voltage is adjusted to 230V. (Please remember not to adjust it wrong, otherwise it will burn out the power supply).
Q: Can I configure the European standard plug m?
A: We have EU UK US AU, etc. will be configured according to your country and region the correct plug
